catalog_statistics

Catalog-wide statistics of one or several catalogs: a table with one row per event, plots, and an HTML report.

gwtc_analysis catalog_statistics --catalogs GWTC-4 GWTC-5 --include-detectors --include-area

Inputs. Event metadata from the GWOSC event lists (names, times, false-alarm rates, median source-frame masses, distances, network SNR); with --include-detectors, the detector network of each event from the GWOSC v2 API; with --include-area, the sky-localization area at the credible level --area-cred (A90 by default), computed from the skymaps of --data-repo.

Outputs.

• --out-events (TSV): one row per event;

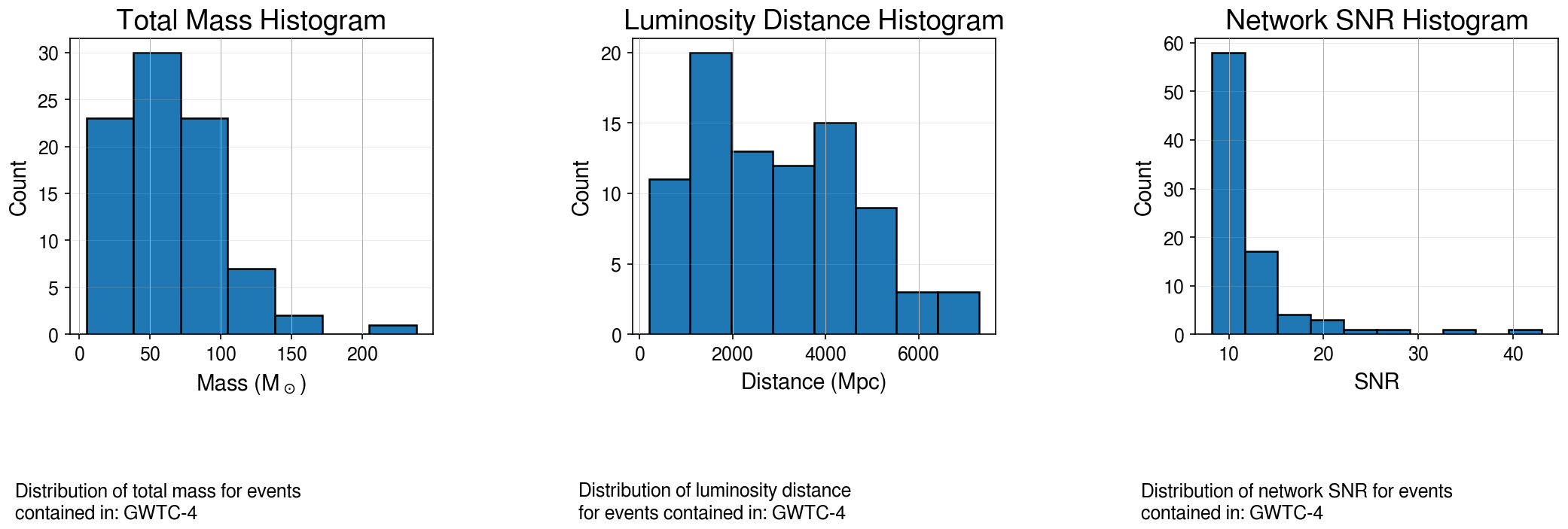

• --plots-dir: the primary against secondary mass diagram colored by SNR, histograms of the main parameters, the fraction of each source type (BBH, BNS, NSBH), the detector networks, and the cumulative distribution of the sky-localization areas, and the remnants (below);
• --out-report: the HTML report with the tables and plots.

Remnants and energetics

Every event with a final mass in GWOSC gets, in the TSV and the report:

• the radiated energy E_rad = (M_total − M_final) c², in M☉c² and in erg, and the radiated fraction E_rad / M_total c². It is the difference of the GWOSC medians, not the median of the difference, and the medians are rounded (to 0.1–1 M☉), so small values are coarse;
• an estimate of the final spin of the binary black holes. It uses the aligned-spin fit of Rezzolla et al. 2008 [76], with both spins set to χ_eff and the mass ratio of the medians. It gives 0.686 for equal masses without spin. The PE value (final_spin of the PE samples) and the peak luminosity, which GWOSC does not list, are read with parameters_estimation.

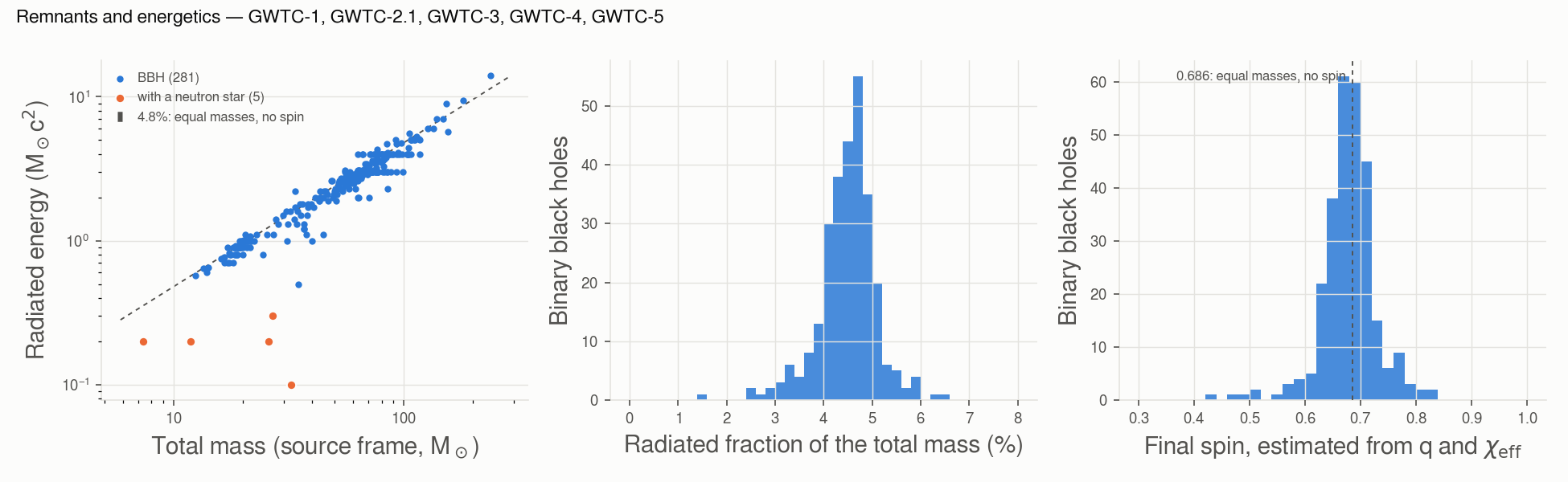

The report lists the 10 events that radiated the most energy, with a figure:

GWTC-1 to GWTC-5: 286 events radiated 4.6% of their total mass (median), close to the 4.8% of equal masses without spin; the events with a neutron star radiate much less (orange). The estimated final spins cluster near 0.69, as expected for mergers of similar masses with small spins.

Event	Total mass (M☉)	Final mass (M☉)	E_rad (M☉c²)	E_rad (erg)	Final spin (estimate)
GW231123_135430	238	222	14.0	2.5 × 10⁵⁵	0.77
GW190426_190642	181.5	172.9	9.4	1.7 × 10⁵⁵	0.74
GW231028_153006	153	144	9.0	1.6 × 10⁵⁵	0.80
GW200220_061928	148	141	7.0	1.3 × 10⁵⁵	0.69
GW150914 (for reference)	64.6	61.5	3.0	5.4 × 10⁵⁴	0.67

GW150914 matches its published values (3.0 +0.5 −0.4 M☉c², final spin 0.67–0.69).

Example

gwtc_analysis catalog_statistics --catalogs GWTC-4 --include-detectors --include-area

GWTC-4.0 (O4a), 86 events with a PE release; every figure below was produced by this command.

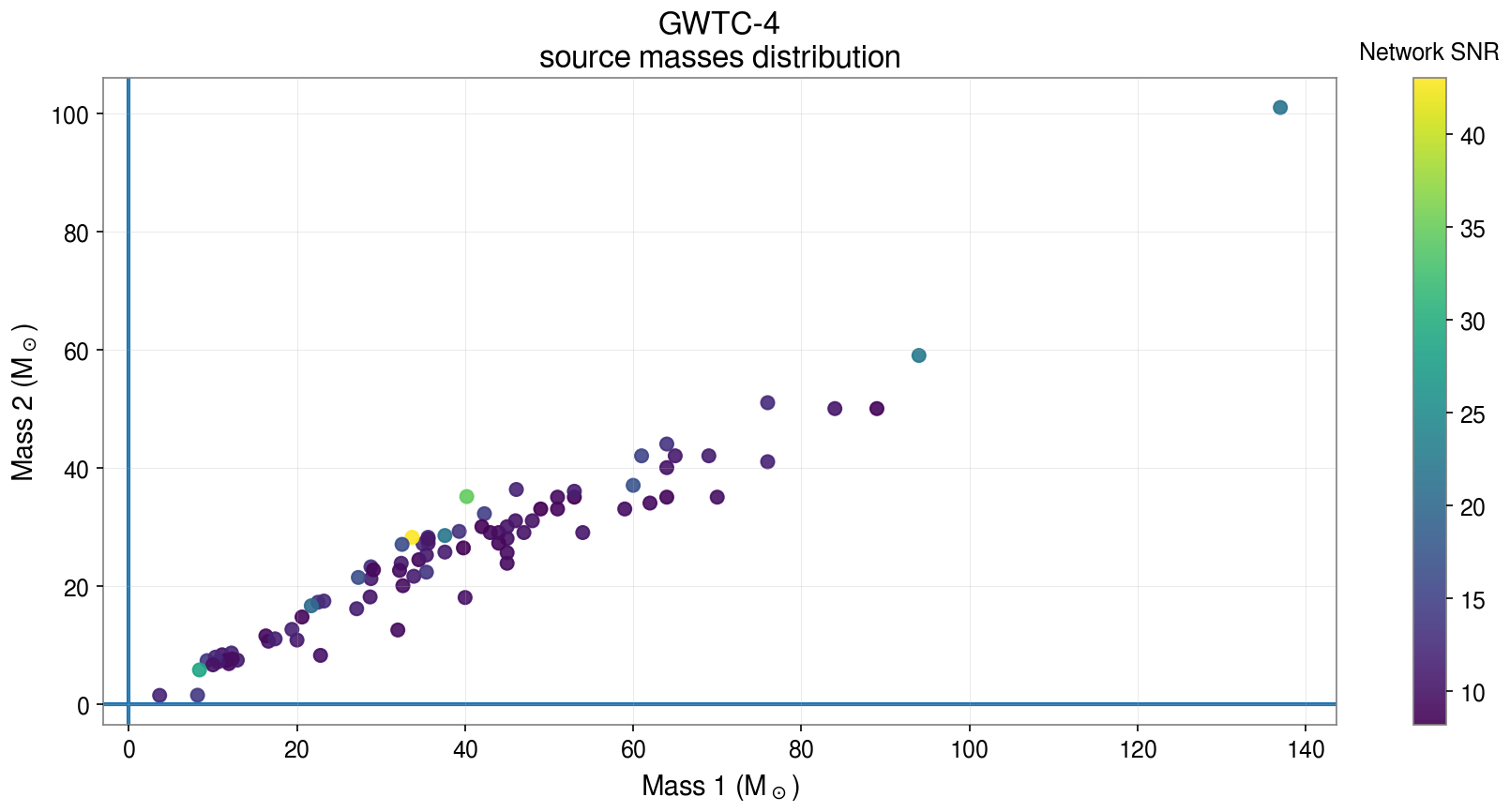

Median source-frame masses, colored by network SNR. The heaviest event is GW231123; the two points near the horizontal axis are the NSBH candidates.

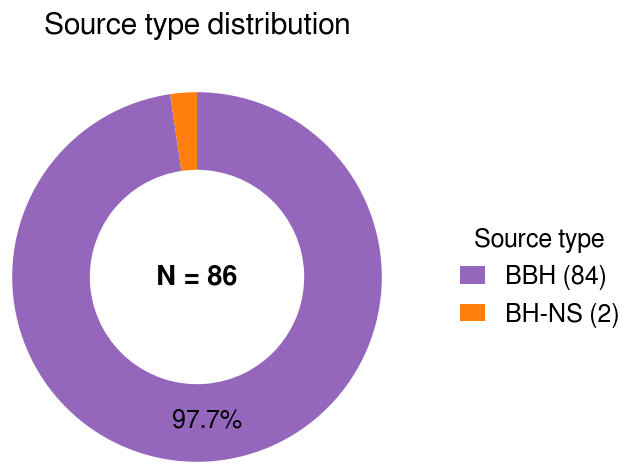

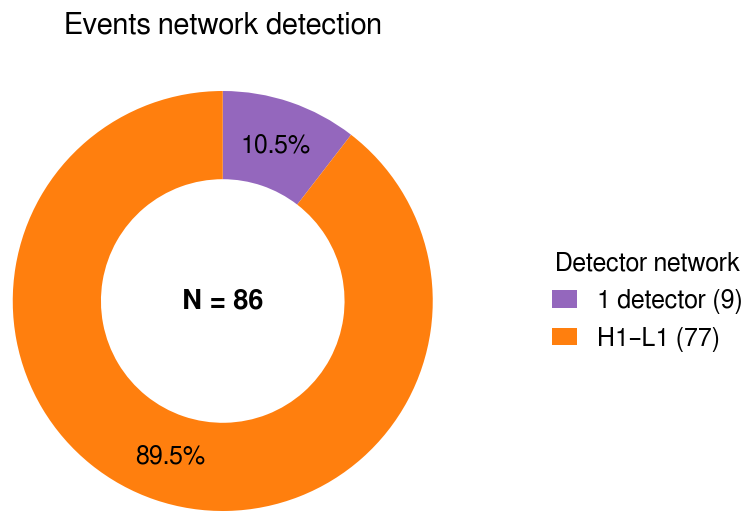

Source types	Detector networks

84 BBHs and 2 NSBHs; 77 events seen by the two LIGO detectors, 9 by one only (Virgo did not observe during O4a).

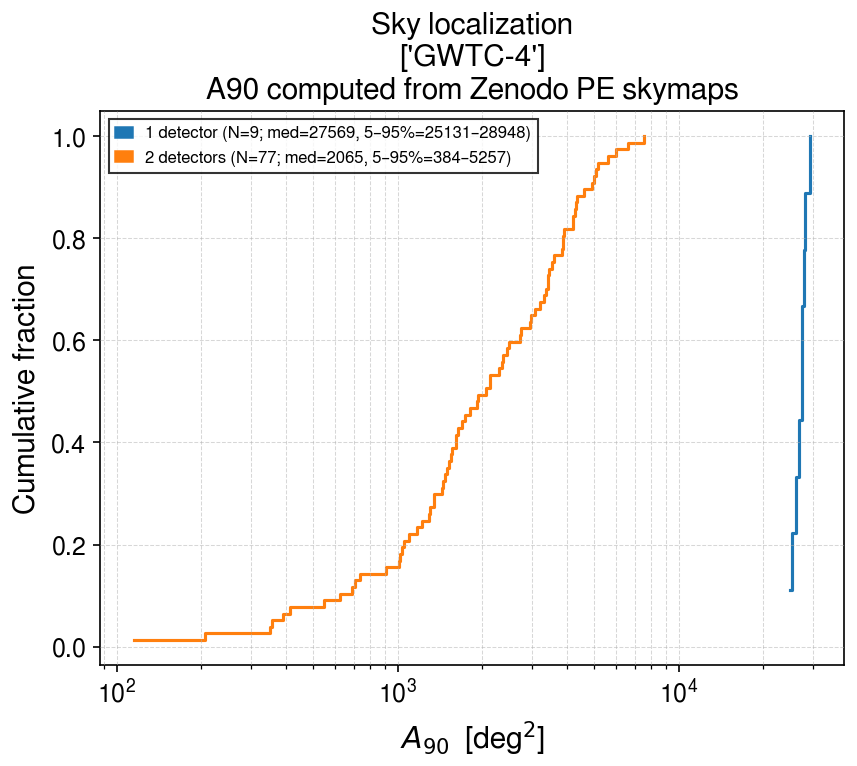

90% sky areas from the Zenodo PE skymaps: median 2 065 deg² with two detectors, about 27 600 deg² with a single detector, which localizes an event only to a large part of the sky.

All options: CLI reference.
